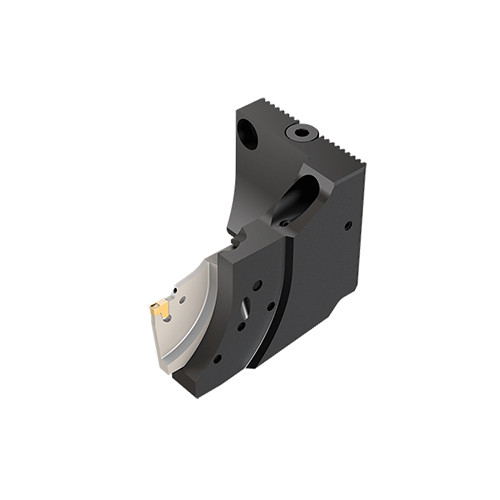

V85 MAHDR-R-XL-JHP
Intermediate holders for ISCAR Modular System holders with directed internal coolant for MODULAR-GRIP-XL adapters


Price: Accedi per il prezzo
Specifiche del prodotto

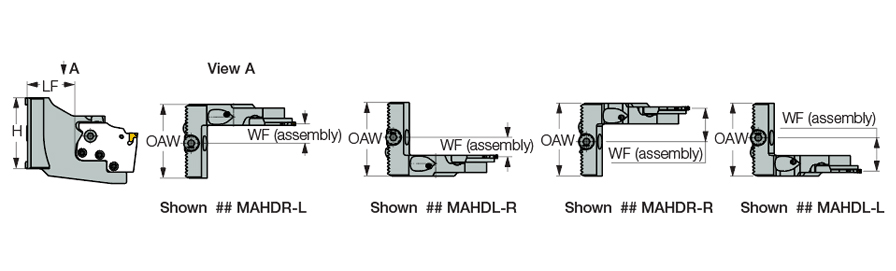

Altezza stelo (H) | 83 mm | Tipo di Misurazione | Metric |
Overall Height (OAH) | 85.5 mm | Functional Width (WF) | 38.1 mm |
Functional Length (LF) | 43.65 mm | Tool Assembly Length (LTA) | 34.59 mm |
Materiale | Steel | Unità | M |
Cutting Direction (HAND) | Right Hand |


Caratteristiche del prodotto
Descrizione | Intermediate holders for ISCAR Modular System holders with directed internal coolant for MODULAR-GRIP-XL adapters | FamilyName | V## MAHD#-#-XL-##-JHP |
Commenti | For spare parts, click on More Info | BrandName | Iscar |
Paese di Origine | Germany |
Informazioni spedizione
Peso Confezione
1.3600
Nome
Parting Off Indexable Holders
FamilyName
V## MAHD#-#-XL-##-JHP
BrandName
Iscar
