FF EWX D20-3-M10-04

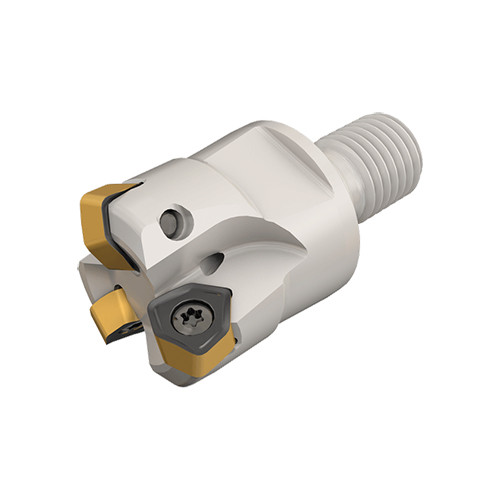

HELIDO UPFEED endmills with FLEXFIT threaded adaptation, forfast feed, carrying double-sided Inserts with 6 cutting edges.


Price: Accedi per il prezzo
Specifiche del prodotto

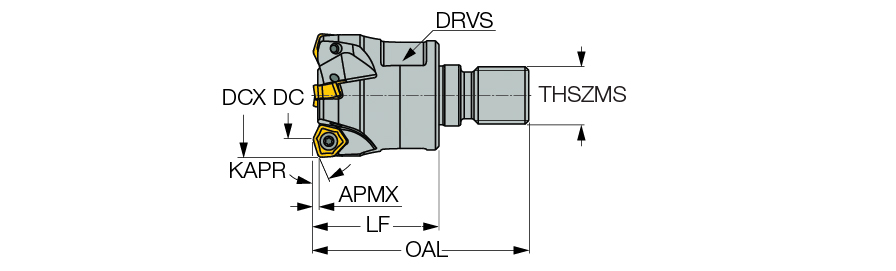

Cutting Diameter (DC/DCX) | 12.6 mm | Drive Size (DRVS) | 15 mm |
Diametro della fresa (DC) | 12.6 mm | Flute Count (NOF) | 3 |
Cutting Item Count (CICT) | 3 | Forza (TQ) | 0.9 Nxm |
Massima profondità di taglio (APMX) | 0.8 mm | Tipologia refrigerazione (CSP) | Coolant Thru |
Lunghezza totale (OAL) | 45 mm | Angolo del tagliente (KAPR) | 17 Degrees |
Massimo angolo di rampa (RMPX) | 4.8 Degrees | Cutting Direction (HAND) | Right Hand |
Applicazione | | Apertura di cave | Copiatura | Fresatura ad elevati avanzamen | Interpolazione elicoidale | Lavorazioni assiali | Penetrazione in rampa | Spianatura | | Tipo di Misurazione | Metric |
Inserto master (MIID) | H600 WXCU 040310HP | Materiale | Steel |
Functional Length (LF) | 25 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
Tipo di utensile | Fast Feed Endmill | Diametro massimo della fresa (DCX) | 20 mm |
Connection Thread Nominal Size Machine Side (THSZMS) | M10 | Unità | M |


Caratteristiche del prodotto
Descrizione | HELIDO UPFEED endmills with FLEXFIT threaded adaptation, forfast feed, carrying double-sided Inserts with 6 cutting edges. | FamilyName | FF EWX-M |
Commenti | Per i parametri di taglio consigliati, programmazione del raggio e adattatori cliccare su Altre Informazioni | BrandName | Iscar |
Paese di Origine | Israel |
Informazioni spedizione
Peso Confezione
0.0990
Nome
Indexable End Mills
FamilyName
FF EWX-M
BrandName
Iscar
